Safety and ergonomics are not only legal requirements, but also essential factors for productivity and employee well-being. The OmniFix CT Lift was developed to address these challenges and help you optimize your workflows.

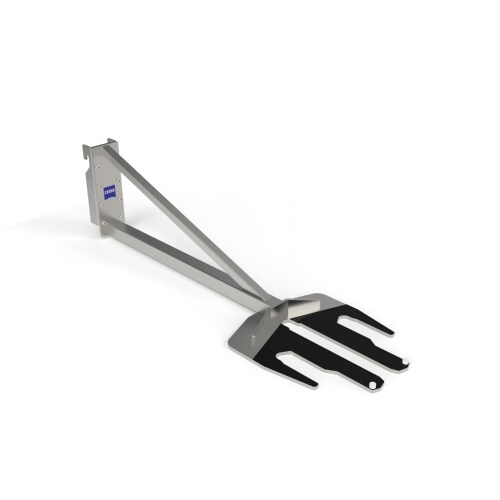

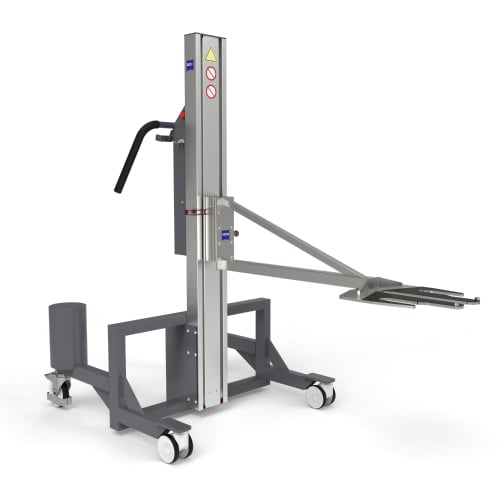

The OmniFix CT Lift enables efficient loading and unloading thanks to its sophisticated design and user-friendly operation. Products prepared on the GAMMA 1500 pallet can be easily picked up from the floor or table with the specially designed fork. At the touch of a button, the fork can be moved up or down, which greatly simplifies the entire process. The non-slip mat and integrated pin ensure that the pallet remains securely fixed during transport, minimizing the risk of accidents and damage.
Once the pallet is secured, the lift is simply moved to the machine and the pallet can be lowered precisely onto the GAMMA pallet holder. With this lift, you not only increase productivity, but also ensure the safety of your employees and products. Make the OmniFix CT Lift an indispensable part of your logistics processes and experience a new dimension in machine handling.
- Safe machine loading of heavy products. Thanks to non-slip mat and safety pin
- Possibility to lift the pallet either from the ground or desk.
- Easy handling by adjusting the horizontal axis to position the pallet on the pallet chuck.
- Fast change system, of the forks
- Prevention of long-term body problems
- Cost-saving by reducing employee downtime
- Machine
- METROTOM 1500
Technical Data
- Built-in battery
- Charging via cable
- Approximately 80 lifts can be performed with a full battery
- Charging takes approximately 6 hours (80 percent can be achieved in 2-3 hours)
- Lift is designed for the METROTOM 1500
- Battery operated
- Simple fork change system
- Operation directly on the lift or with a remote control
- Approved lifting weight: 50 kg
- Fork is compatible with the
- ZEISS GAMMA 1500 G1 G2 pallet
Batterie
- Build-in battery
- Charging via cable
- A full battery can perform approximately 80 lifting operations
- Charging takes approximately 6 hours (80 percent can be achieved in 2-3 hours)
Scope of delivery:
- Lift with designed fork for METROTOM 1500
- Safety Pin
Product note
The OmniFix CT lift for METROTOM 1500 is just available for Europe, China and Japan.
