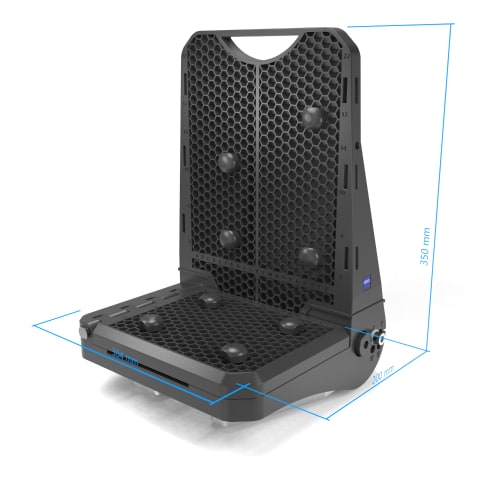

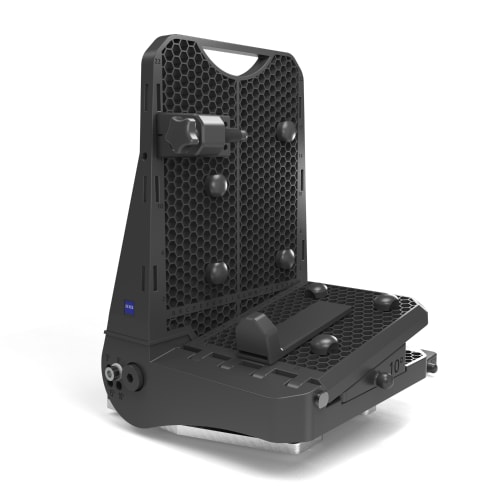

OmniFix CT universal

OmniFix CT Universal is designed for prismatic workpieces or products with straight surfaces to be easily and quickly positioned at an angle in the horizontal and vertical direction. The product can be aligned vertically at 0°, 5° and 10° and horizontally at 0°, 5°, 10° and 15°. There are two different stops to align and secure the workpiece from moving. For alternate contact points on the workpiece, individual supports can be moved, added or removed to the fixture as required. Index markers are integrated into the fixture to allow the repositioning of these contact points and stops.
