Application
Calibration set for optical applications on coordinate measuring machines.
- Complete set with tools and mounting material (incl. reference sphere)
- Permanently stable holder for reference spheres (laboratory-tested)
- Holder adjustable to different angles
- Total height of holder to center of sphere: approx. 105 mm
- For attaching to CMM surface plates with M12 thread
Details
- Application
- Tactile
- Product Type
- Reference Set
- Machine
- O-INSPECT
- Stylus Tip Material
- Ceramic
- Ø Sphere (DK)
- 25.0 mm
- Length (L)
- 105.0 mm
- Material
- Stainl. St.

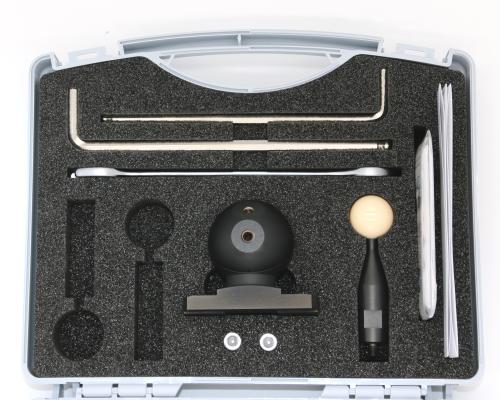

consisting of:
- Reference sphere holder RSH-105-B
- Mounting hardware for CMM surface plates with M12 thread
- Reference sphere Ø DK25 mm made of ceramic with shaft, M6 for RSH systems (600332-8445-000)
- Calibration certificate
- Tool kit
- Carrying case
