Application
This kit can be used to position small and medium-sized components perpendicular to the Z-axis. The set position can be easily fixed with the integrated clamping screw. A wide range of geometries can be clamped using the clamping and tensioning elements included.. Ideal for alignment on an O-INSPECT or O-DETECT machine and for microscopes
- Flexible positioning of small parts perpendicular to the Z-axis
- Easy handling
- Wide range of clamping options
- Compatible with ZEISS OmniFix kits and grid pallets
Details

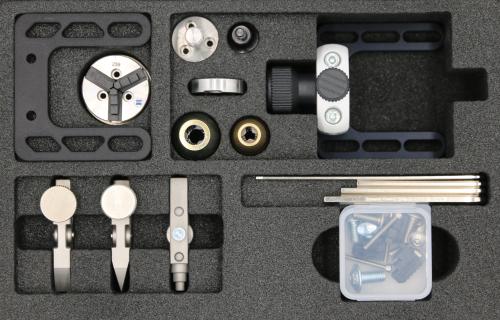

Scope of delivery:
- Rotary axis with base plates with M4 and M6 connection
- three-jaw rim chuck, diam. 30 mm
- clamping plier for internal clamping
- clamping plier for external clamping wide
- clamping plier for external clamping pointed
- drill chuck for diameter 0.4 - 3.5 mm
- drill chuck for diameter 1.2 - 6.0 mm
- magnet holder
- fastening equipment and adapters
Product note
The rotation axis can be mounted on VISIONER grid plates with M4 threaded holes as well as on M6 grids 50x50 (e.g. machine table O-INSPECT/O-DETECT)
