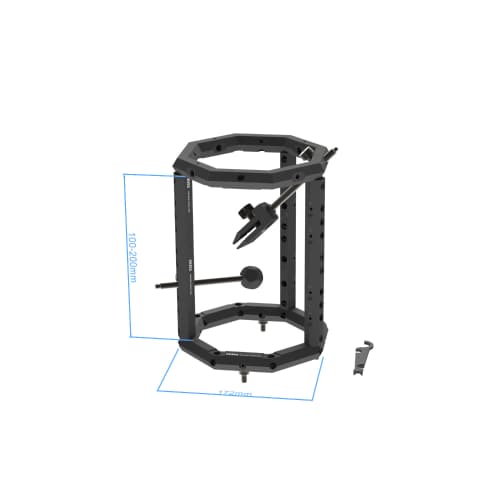

The reference frame set offers you the ideal solution to take your measurements to the next level. The point marks are applied directly to the frame, eliminating the need to apply them to each individual product to be measured. Valuable time is saved and the effort required for measurement preparation is significantly reduced! The reference points distributed throughout the room increase the absolute measuring accuracy.
Another advantage of the reference frame is the reusability of the point marks on the frame. Simply position your product in the reference frame - time-consuming sticking and unsticking is a thing of the past! In addition, our system has a modular design and can be adjusted in height to suit your product, offering maximum flexibility for your individual measurement requirements. You also have the option of supplementing your set with various products from the fixture category to expand your 3D measurement technology options.
- Avoidance of dot marks on the test products
- Time saving, as not every product has to be affixed with dot marks
- Maximum flexibility thanks to an infinite number of alignment options in 3D space
- Modular system
- Can be combined with other columns, attachments and clamping elements
- For process automation
- Material
- Black anodized aluminum
- Grid
- AF16
Scope of delivery:
- 1 Top of the frame - Ø150 (626109-9610-074)
- 1 Bottom of the Frame - Ø150 (626109-9610-075)
- 6 Extension for Reference frame - 100mm 626109-9610-076)
- 4 Combination reducing lock bolt - AF25/16 (000000-0741-448)
- 19 Lock for Bolt - AF16 (000000-0560-585)
- 6 Bolt - without thread, AF16 (000000-0560-586)
- 1 Parallel clamp with exchangeable jaws (626109-9610-050)
- 2 Connection for Parallel clamp and dodecahedron (626109-9610-077)
- 1 Measurement adapter dodecahedron - Ø28 (626109-9610-078)
- 3 Combi bolt - M4, AF16 (000000-0560-534)
- 2 Knurled screw - M4, Ø16x19,5 (000000-0741-449)
- 1 Combi tool - AF16 (626109-9610-079)
- 1 Hexagonal offset screwdriver SW 3
