Application

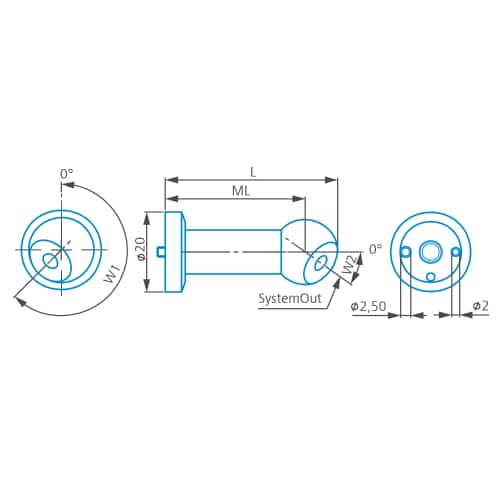

Titanium angle element with milled spatial angle W1 and W2. With M5 pro adaptation consisting of M5 thread and 2 index pins
- CNC-machined solid angle
- Fixed angle for reliable production measurement
- Manufactured from a high-grade titanium alloy
Details
- Application
- Angle
- Product Type
- Angle
- Connection Type
- M5 Pro
- Connection Type Out
- M5
- Length (L)
- 43.0 mm
- Measurement Length (ML)
- 35.0 mm
- Material
- Titanium
- Ø Body (DG)
- 20.0 mm
- Angle 1 (W1)
- 270.0 °
- Angle 2 (W2)
- 95.5 °
- Weight
- 24.0 g

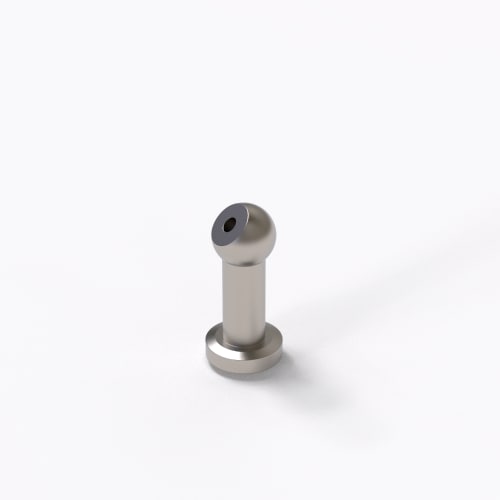

Consisting of: Single angle piece made of titanium
Product note
Angle elements with milled spatial angles replace complex adjustable angle pieces. The CNC accuracy makes it possible to achieve the required angle positions without a great deal of adjustment effort, thus enabling reliable production measurement
